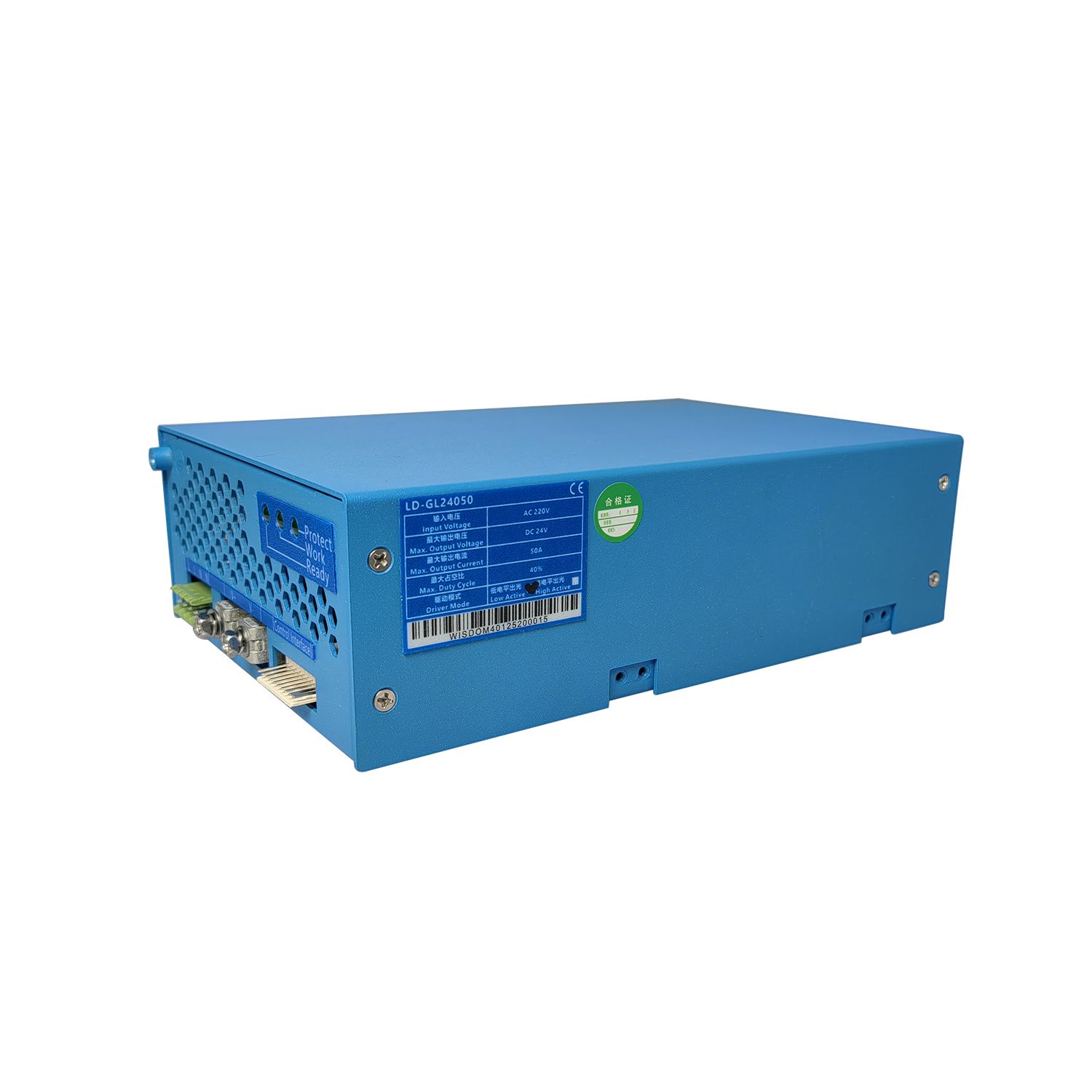

50A24V
Product features1. Customizable high-level or low-level control signal output.2. Input 3.22~5V analog control voltage corresp
Product features
1. Customizable high-level or low-level control signal output.
2. Input 3.22~5V analog control voltage corresponding to 10~50A current output.
3. Equipped with overvoltage protection, overcurrent protection, and high-temperature protection.
4. The current control signal comes with a 5V limit function.

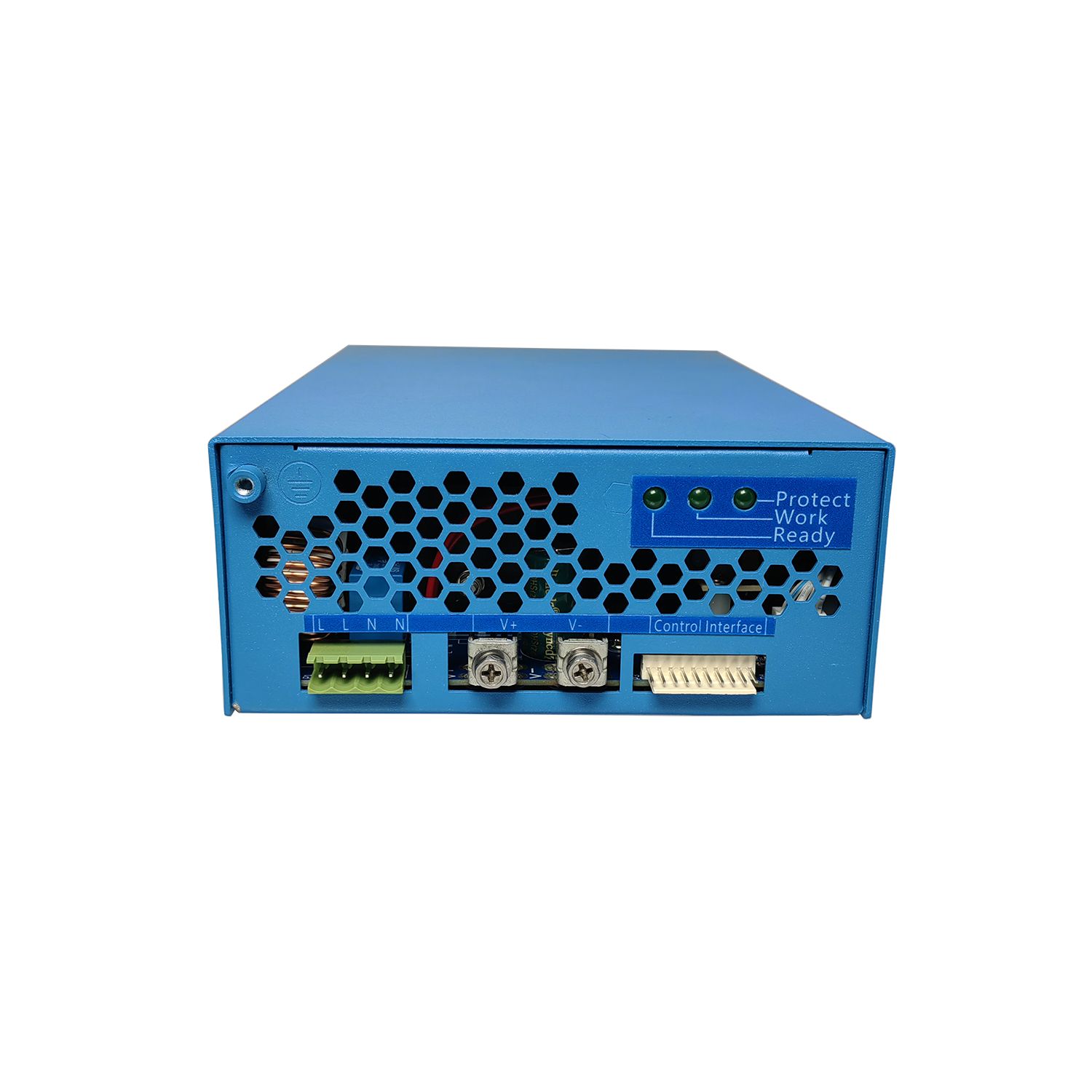

5. Clear status indicator lights.
6. Blue frosted casing.
Detailed Description
Product features
1. Customizable high-level or low-level control signal output.
2. Input 3.22~5V analog control voltage corresponding to 10~50A current output.
3. Equipped with overvoltage protection, overcurrent protection, and high-temperature protection.
4. The current control signal comes with a 5V limit function.
5. Clear status indicator lights.
6. Blue frosted casing.
Technical data
| Model | 50A24V |
| Input Voltage | G--AC 220V/W--AC110V(±10%) |
| Output Voltage | 9.6~24VDC |
| Output Current | 10~50A |
| Output Power | Maximum 1200W |
| Number of bars | 5~13 |
| Laser Power | 250~650W |
| Output current Duty cycle | |
| Circuit Protection | 26.2V |
| Size (L x W x H) | 217mmx165.48mmx63.2mm |
| Weight | 2.22kg |
