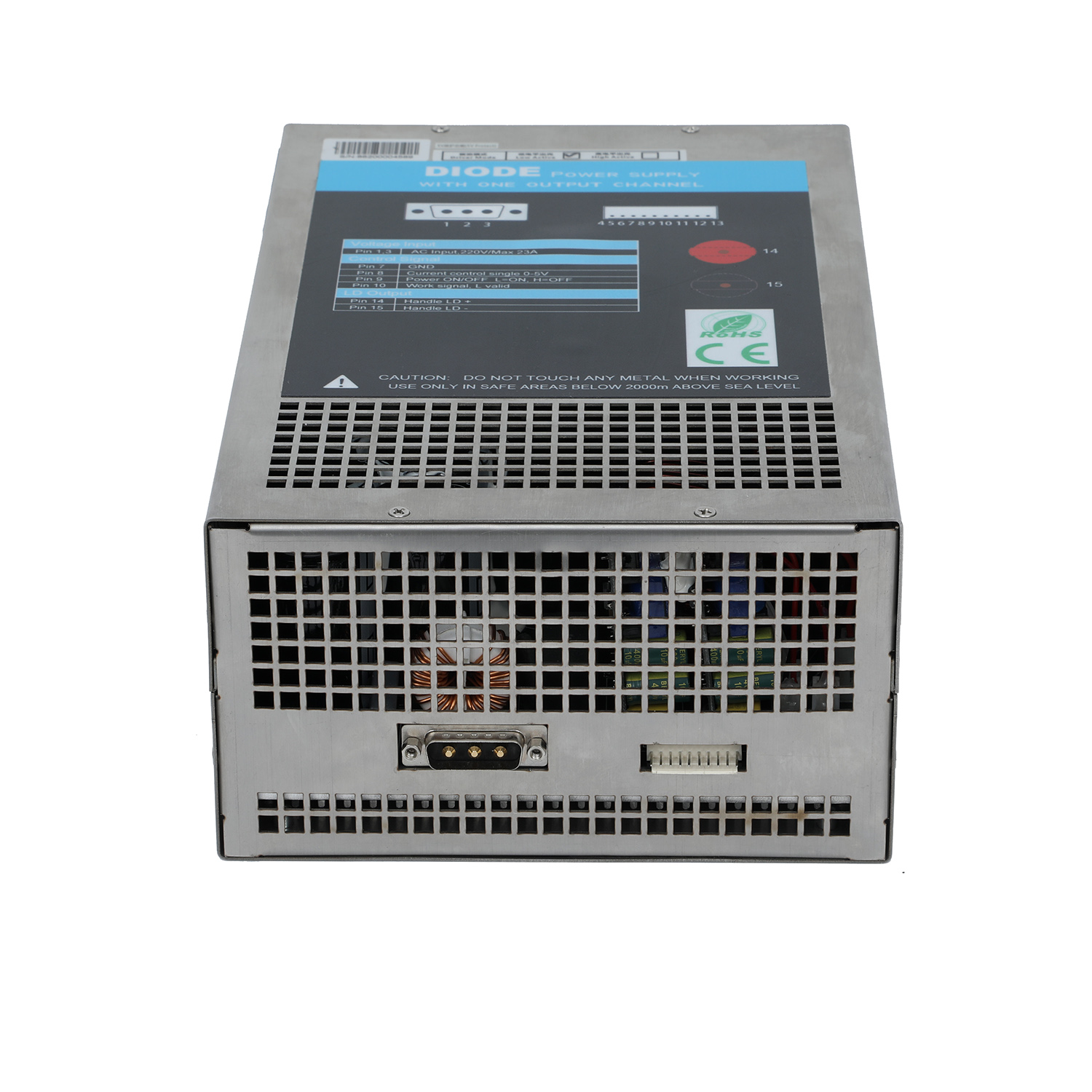

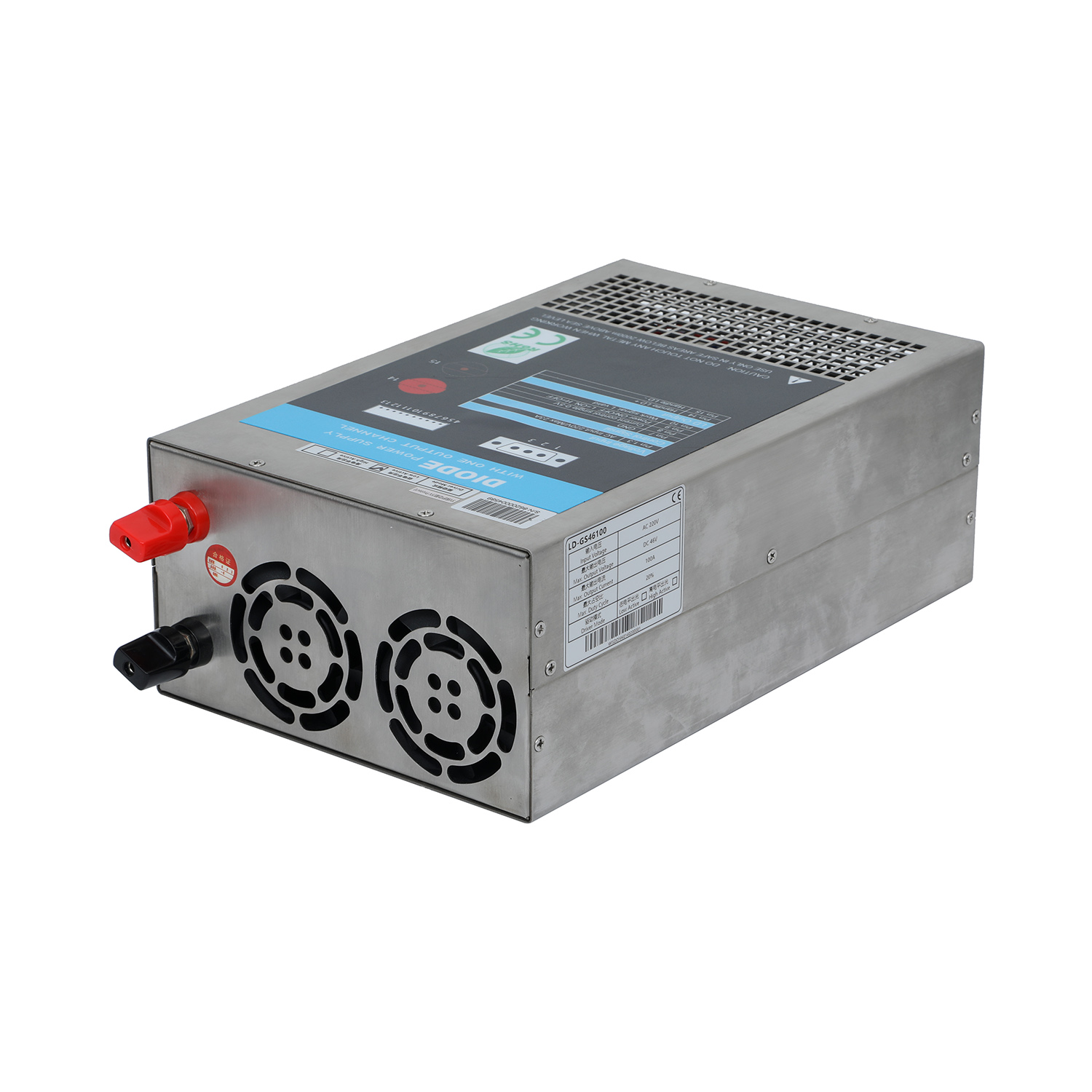

100A46V frosted aluminum shell
Full bridge power supply, Efficient and stable, can work for a long time
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Detailed Description
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Technical data
| Model | LD-GS46100 / LD-WS46100 |
| Input Voltage | G--220V / W--110V AC 50Hz(±10%) |
| Output Voltage | 33.2~46V |
| Output Current | 0~100A |
| Output Power | Maximum 4600W |
| Number of bars | 18~24 |
| Laser Power | 1800~2400W |
| Output current Duty cycle | Maximum 20% |
| Circuit Protection | Over current protection, temperature protection |
| Size (L x W x H) | 324.2*183*103.6mm |
| Weight | 5.7kg |
