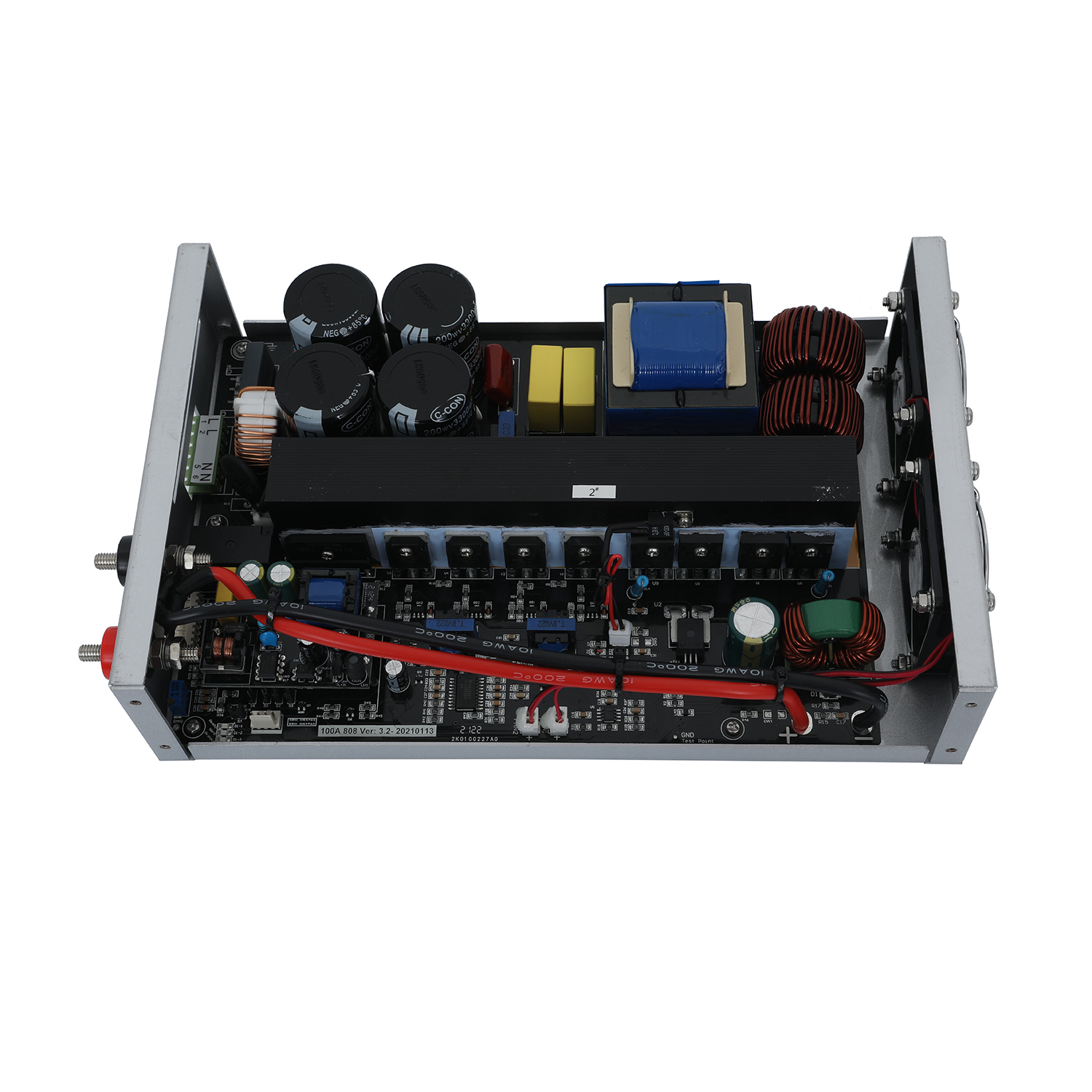

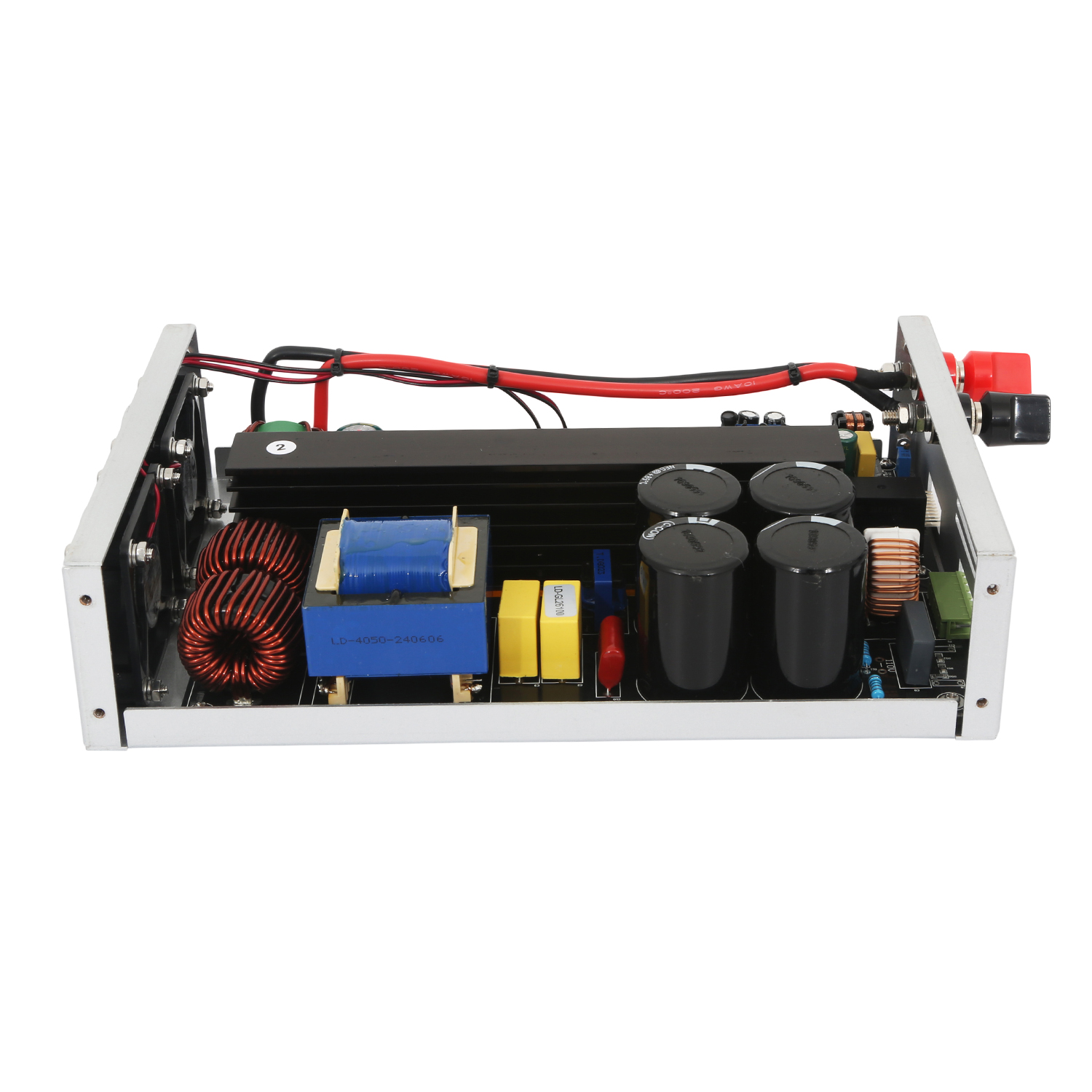

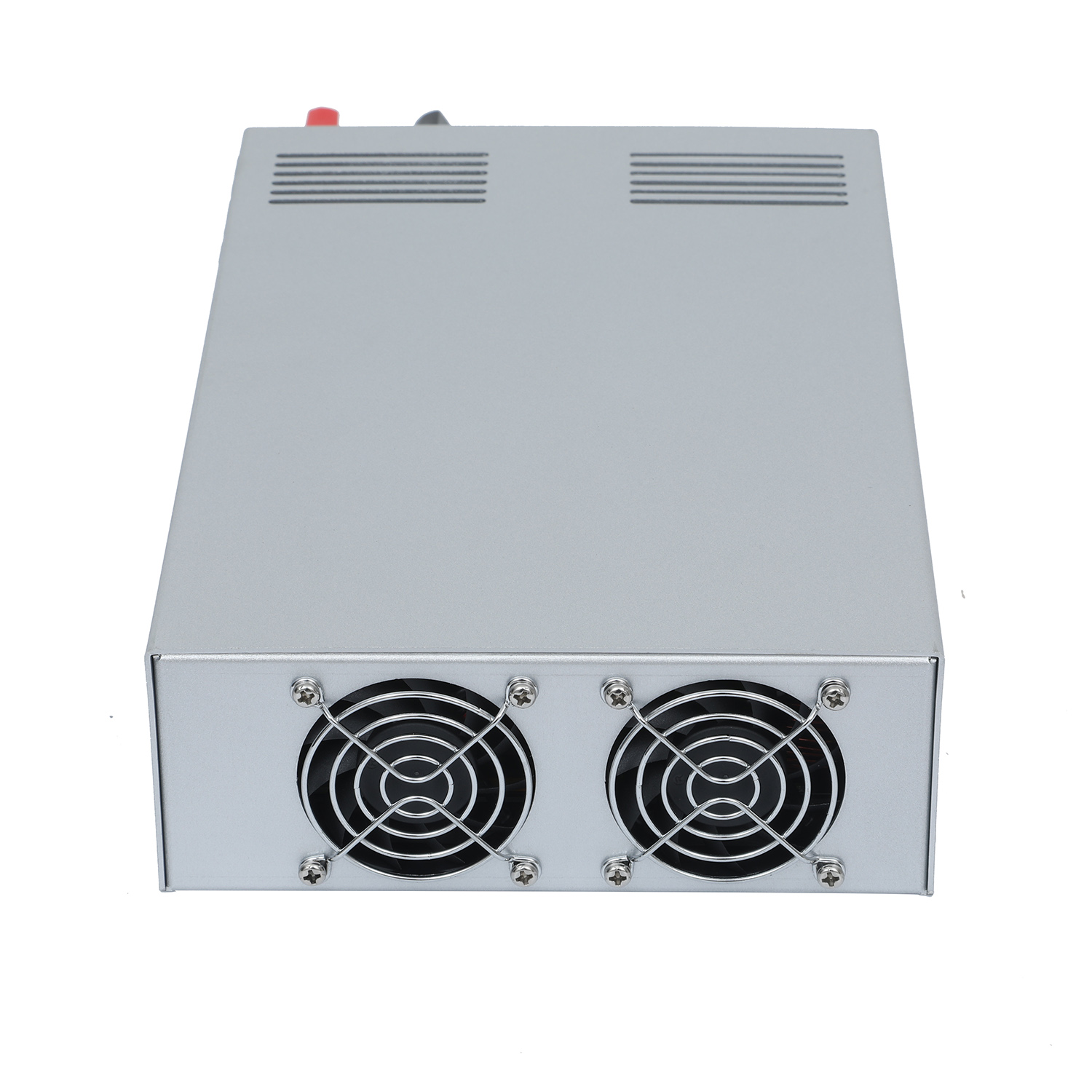

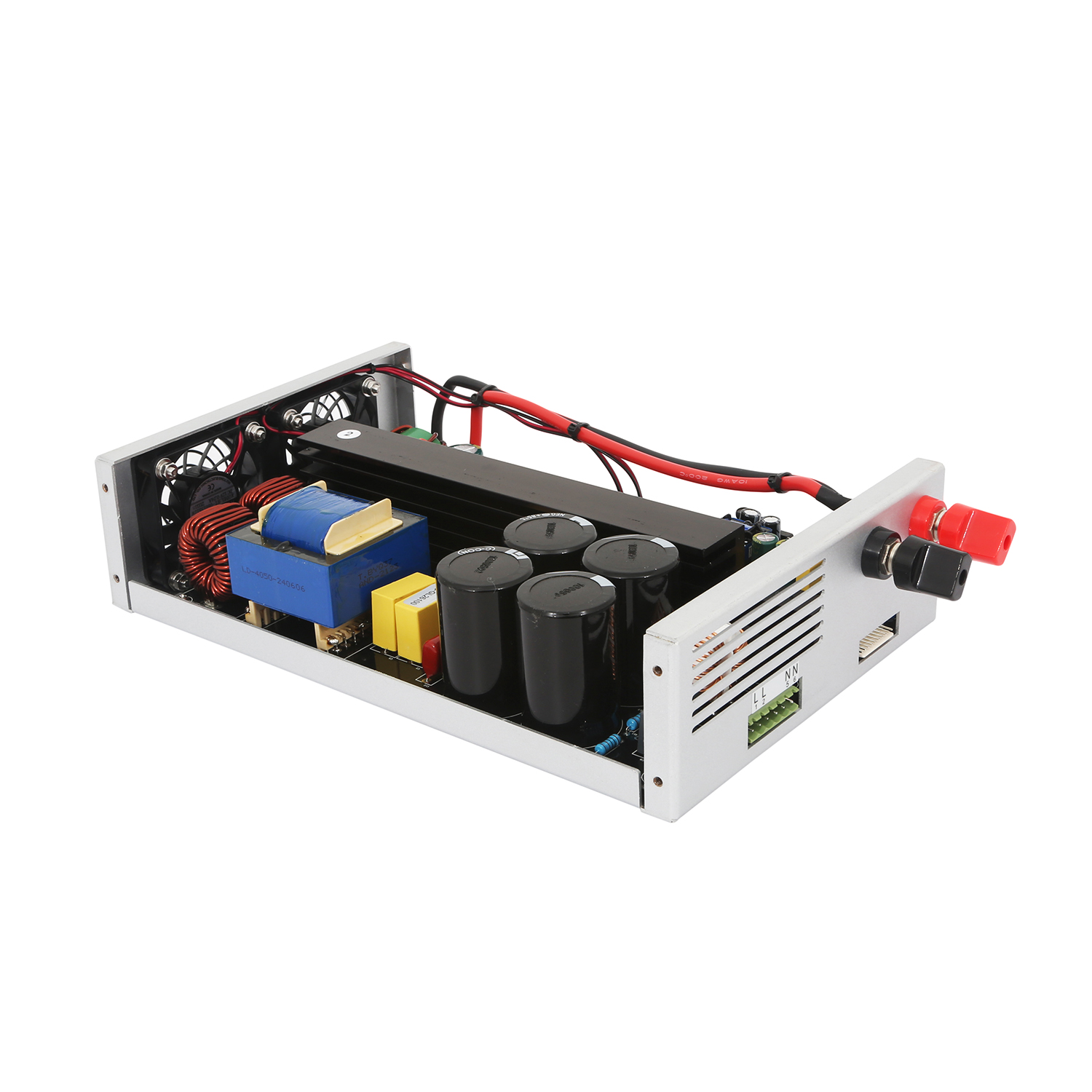

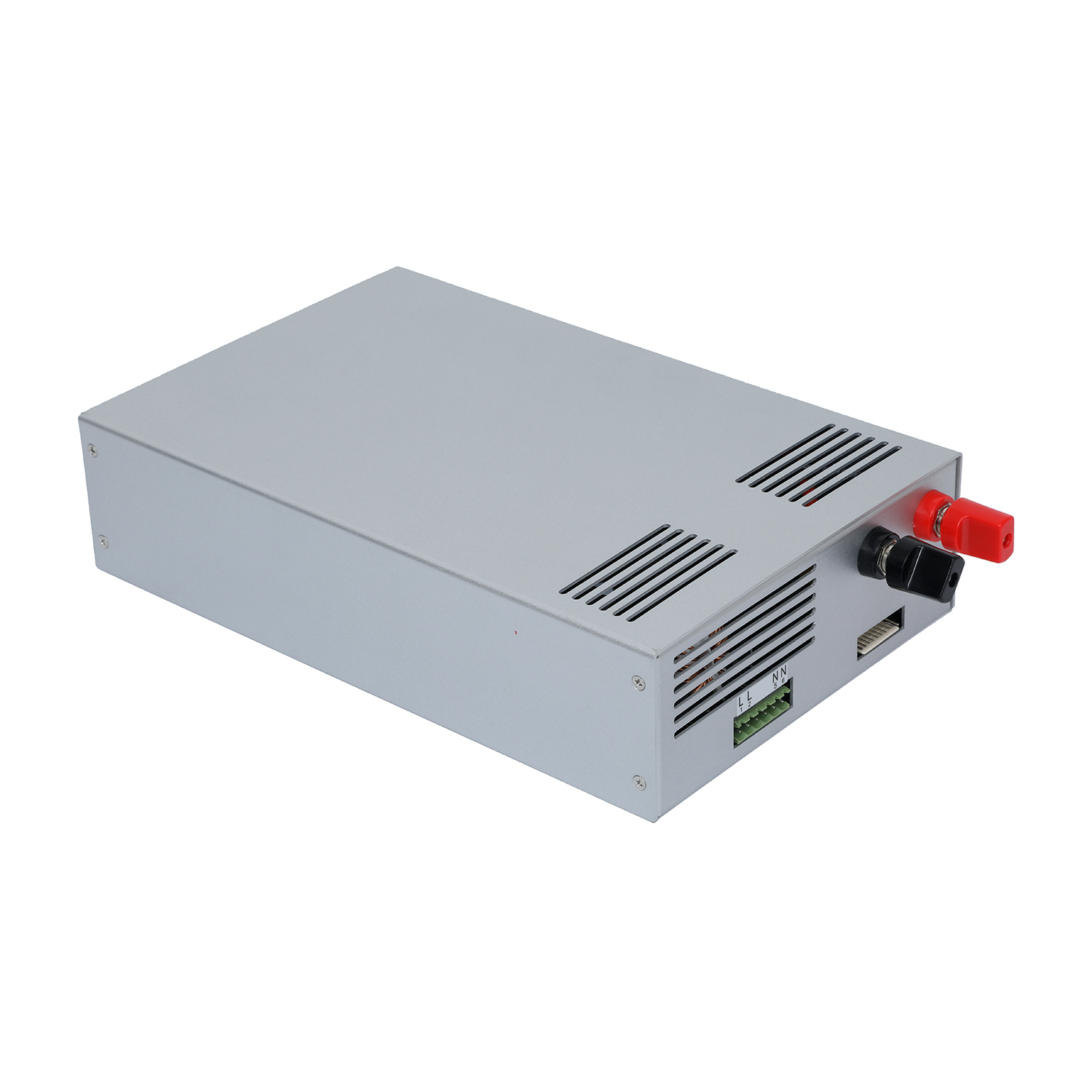

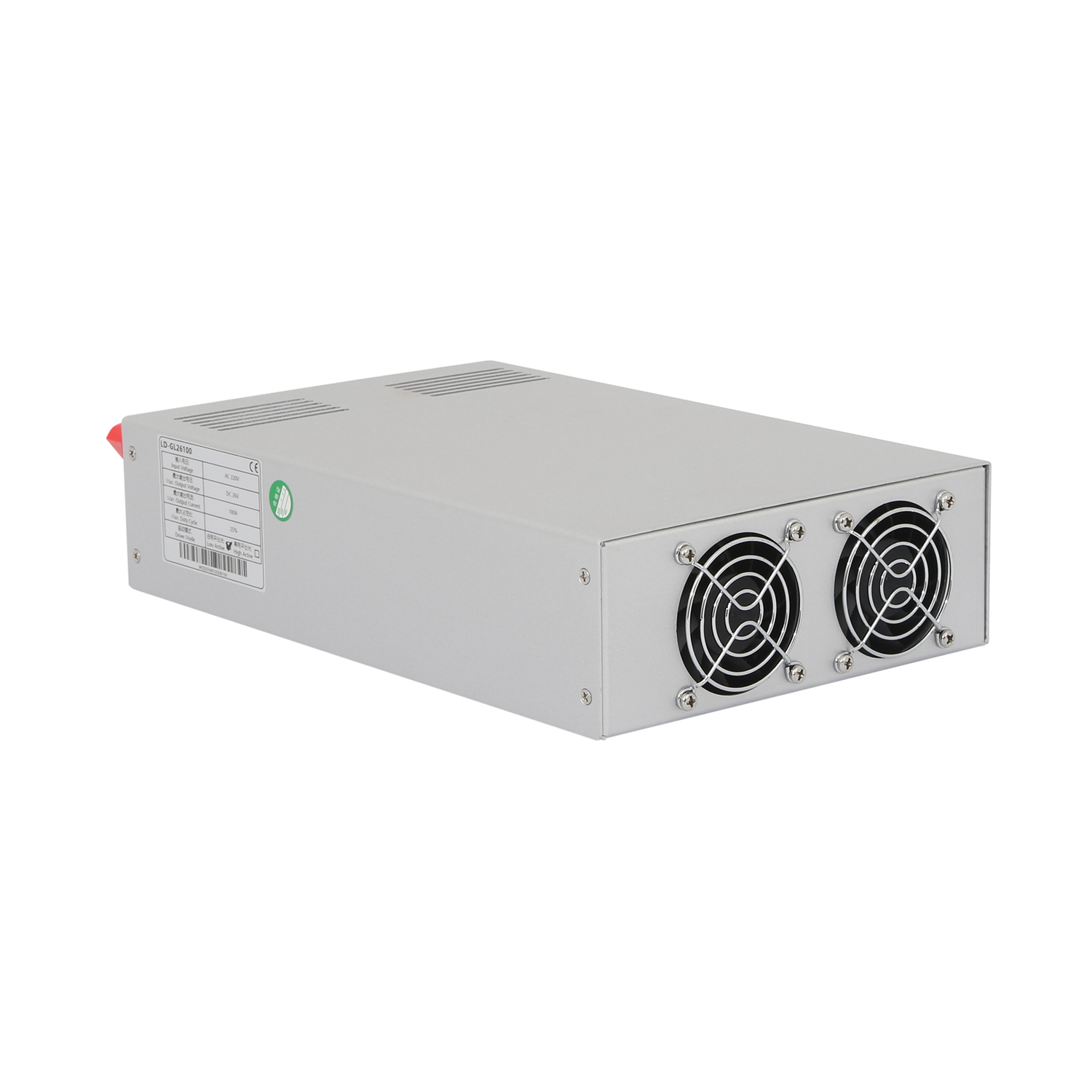

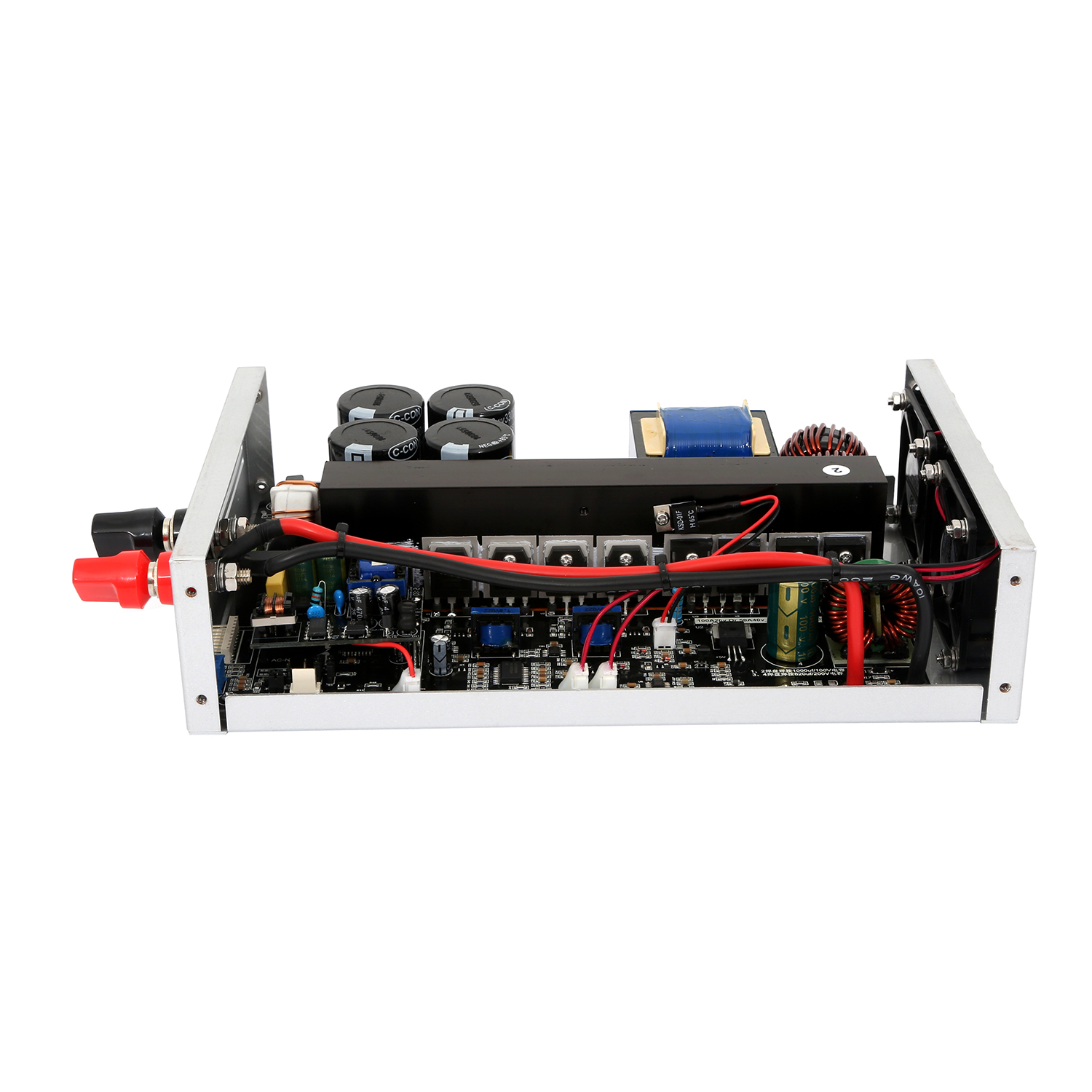

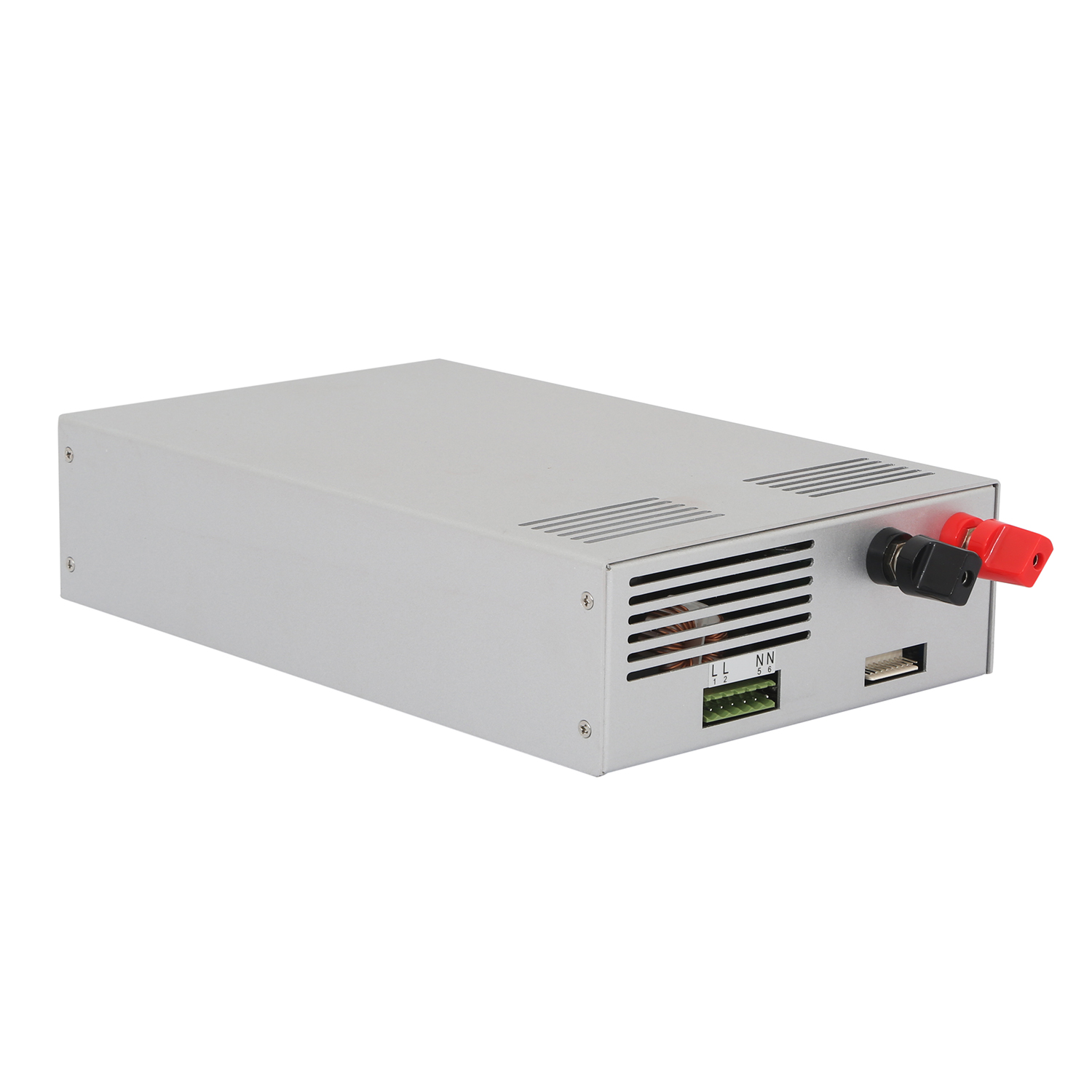

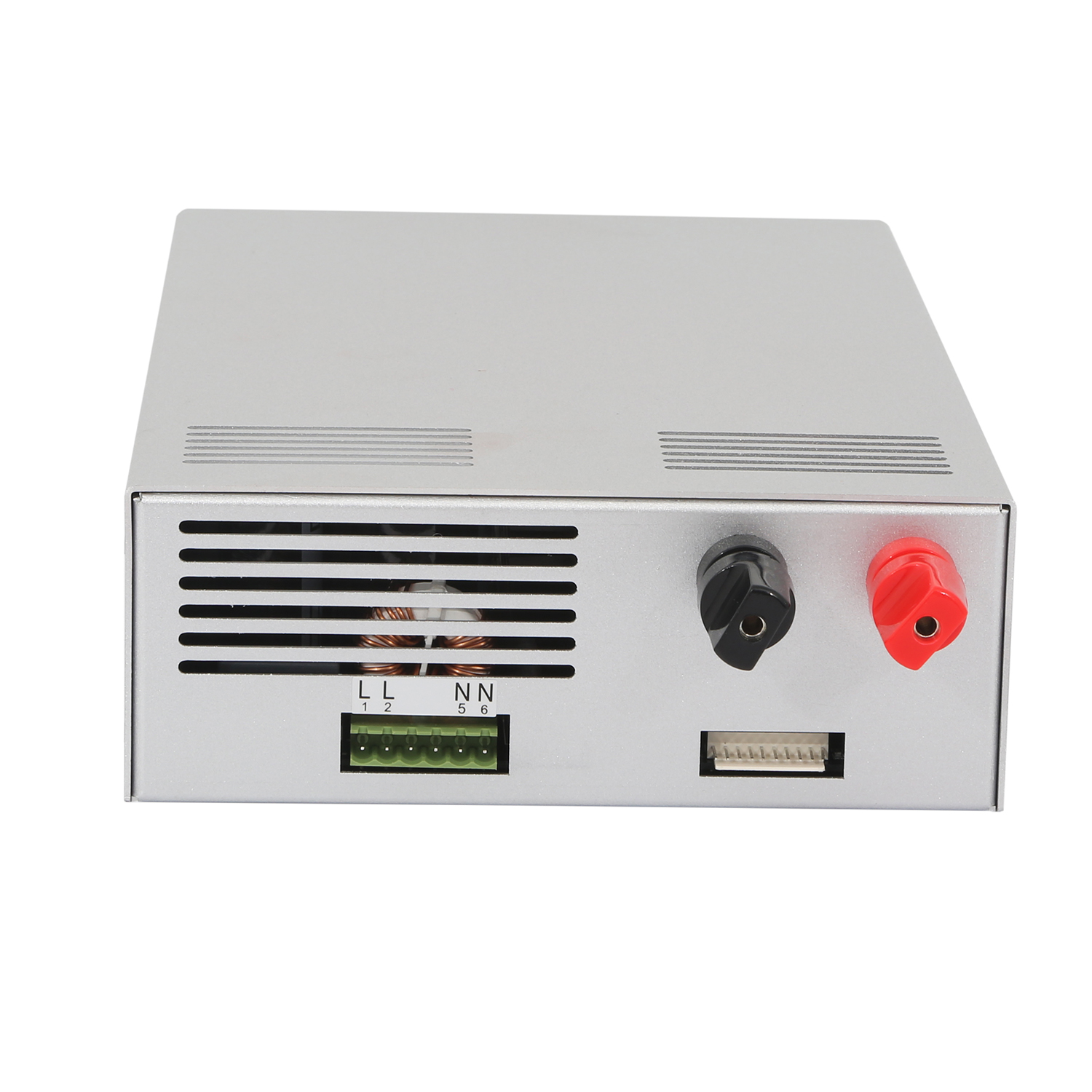

100A26V frosted aluminum shell

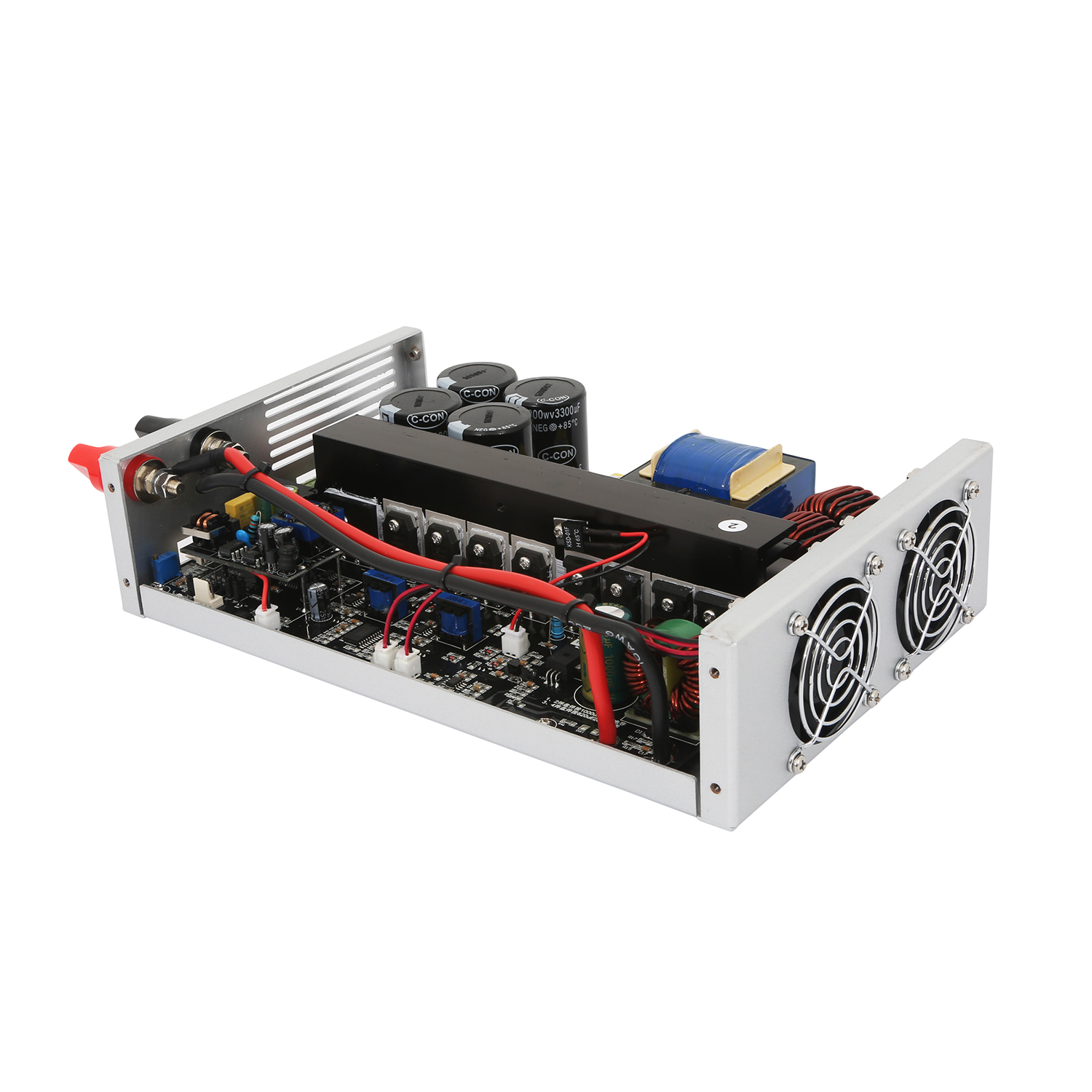

Full bridge power supply, Efficient and stable, can work for a long time
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Detailed Description
Product features
1. Full bridge power supply;
2. Laser load with adaptive output voltage (diode characteristics);
3. Efficient and stable, can work for a long time;
4. The current control signal is equipped with 5V limit function;
5. Safe, simple and convenient wiring, cost-effective;
6. AC 220V input or AC 110V input can be customized.
Technical data
| Model | LD-GL26100 / LD-WL26100 |
| Input Voltage | G--220V / W--110V AC 50Hz(±10%) |
| Output Voltage | 16.8~26V |
| Output Current | 0~95A |
| Output Power | Maximum 2600W |
| Number of bars | 8~13 |
| Laser Power | 800~1300W |
| Output current Duty cycle | Maximum 25% |
| Circuit Protection | Over current protection, temperature protection |
| Size (L x W x H) | 322*183*68mm |
| Weight | 2.7kg |
